Tutorial: AKVIS Enhancer

Process a single image

AKVIS Enhancer also allows increasing detail on an image using a single shot. Follow the instruction below to improve detail in shadows and in highlights:

Step 1. Launch AKVIS Enhancer.
Step 2. Open the original image. For this purpose click on the button in the Control panel and select the required file in the Open dialog box. AKVIS Enhancer supports the following formats: bmp, jpg, tiff and png.
Step 3. Select the value of the Preview Size parameter.
The parameter sets the image size at the preliminary processing stage and can have the following values: 1, ½, ¼, and ¹/8. At value = 1, the size of the original image (its width and height) do not change. At value = ½, it is reduced twice, at value = ¼, it is reduced by 4 times, at value = ¹/8. - by 8 times. The processing time is reduced accordingly.
The Preview Size parameter is an auxiliary tool, it does not influence the real size of the image. The original image will stay the same and all details of the original image will be kept.
The parameter allows to speed up the pre-processing stage when one tries different settings to obtain the best result. It is useful on photos that do not require close attention to every part of it and it is enough to see the general outcome (for example, when processing photos for printing in the standard size).
Step 4. There are four sliders that influence the outcome: Shadows, Highlights, Level of Detail and Lightness.

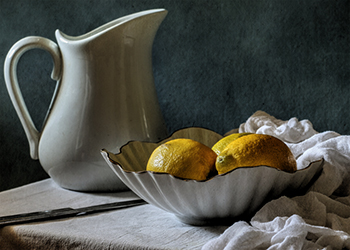

- The Shadows parameter allows details to be revealed in the underexposed parts of the image. The values vary between 0 and 100. As the value increases, the dark parts of the image get lighter and the level of detail in these parts increases. But it does not cause loss of details in the light areas.

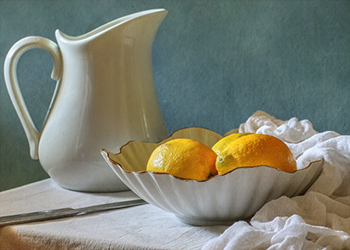

- The Highlights parameter allows details to be revealed in the light areas of the image. The values vary between 0 and 100. When you move the slider to the right, the parameter value increases, the light parts of the image get darker and the level of detail in these parts increases. If you set a high value for this parameter it can cause loss of mid-tones on some images and reduce the image depth.
- The Level of Detail parameter defines the amount of details detected. It accepts values between 0 and 15 with the default value of 5. The higher the parameter value, the sharper the color transition and the more detail is visible. On underexposed images the high value of this parameter may cause noise.
- The Lightness parameter allows changing the overall lightness of the image - to make it darker or lighter. It accepts values between 0 and 100. By default it is set to 50. As you move the slider to the right, the image gets lighter; as you move the slider to the left - it gets darker.
Step 5. If needed, you can correct the image further in the Post Processing tab using the sliders under the histogram and four parameters: Brightness, Contrast, Gamma and Saturation.

A Histogram is a graph that shows the tonal range of an image. On the horizontal line the brightness values are set - from the darkest to the lightest. The vertical line sets the number of pixels having this lightness value.

Below the histogram there are three sliders that can be moved to change the image contrast.

The extreme point on the right end represents pixels having the maximum brightness (white points). If the histogram does not have such pixels, the image does not contain any white points. If we move the white slider to the left, the point against which the slider is located will assume the maximum brightness (255) and the pixels having this value will become white. The brightness of other pixels will be re-calculated accordingly. The image will get lighter.

The extreme point on the left end represents pixels having the minimum brightness (black points). If the histogram does not start at the left end, the image does not have any black pixels (brightness = 0). If you move the black slider to the right, the point against which the slider is located will assume the minimum brightness value. As a result this tone will become black, while other pixels will be re-calculated accordingly. The image will get darker.

The middle slider defines the tone of the image that will have the brightness of 128 (middle-gray tones). If you move the slider to the left, the mid-gray tones get lighter; if you move the slider to the right, the mid-gray tones get darker.

Near the histogram there is a fall-out list with image channels (RGB, Red, Green, Blue, Colors, Luminosity). It is possible to adjust every channel separately or correct a combined channel.

The Post Processing tab also contains parameters that allow correcting brightness and contrast of the image, making gamma-corrections and changing saturation of the image.
- The Brightness parameter allows changing the image brightness. It accepts values between -100 and 100 with the default value of 0. The higher is the value of the parameter, the lighter are all pixels of the image, and vice versa.
- The Contrast parameter allows increasing (if the value is over 0) or reducing (if the value is under 0) the difference between bright and dark parts of the image. The parameter accepts values between -100 and 100 with the default value set to 0.
- The Gamma parameter allows changing the overall contrast of the image by increasing or reducing mid-tones and gray mid-tones. The parameter accepts values between 50 and 250 with the default value set to 100.
- The Saturation parameter allows changing the intensity of colors on the image. The parameter accepts values between -100 (gray color) and +100 (saturated colors). By default the value is set to 0.
As you adjust the settings in this tab, the processing is started automatically. The result is shown in the After tab
Step 6. If you like the settings of both tabs, you can save them as a preset and use later. To save the settings, enter a name for the preset into the Presets field and press the button Save.

Next time you launch the program, these settings will be used by default. To return to the initial settings of the program, click on Reset.

To process the image with a certain preset, select this preset from the fall-out list to start the process.

To delete a preset, select it from the list and click on the button Delete.
Step 7. Save the processed image into a file. Click on in the Control panel to open the Save As dialog box. Enter a name for the file, define its format (jpg, bmp or png) and select the destination folder.
Step 8. It is possible to print the image. For this purpose click on , adjust the print settings in the Print dialog box and press the button Print.

The left part of the Print dialog box is the preview area where the current position of the image on the page is shown, in the right part of the dialog box the print settings are adjusted:
- The check-boxes Album and Portrait set the page orientation when printing. The check-box Album corresponds to the horizontal page orientation (width larger than height), the check-box Portrait - to vertical.
- The parameters Scale, Width and Height and the check-box Fit to Page set the printed size of the image. They do not influence the image itself, only its printed copy. It is possible to change the size of the printed copy by specifying the image scale in % (any value less than 100% reduces the image, any value over 100% increases it) or by setting new values for width and height in the corresponding fields. If you want to fit the image into the page, enable the check-box Fit to Page.
- The image in the preview area has a frame with markers that allow changing the image size manually. Put the mouse cursor to a corner marker or to one of the sides (the cursor will transform to a two-side arrow) and drag the marker or the side. To change the position of the image on the page, bring the cursor to the center of the image, press the left mouse button and move the cursor. Besides, it is possible to define the image position on the page with the parameter Move To by clicking on one of the nine squares.
If your computer is connected to a local network with several printers or several output devices are connected to this computer, you will have to choose one of the available printers to do the job. Click Printer Setup in the dialog box Print, select a printer in the opening dialog box and adjust the printing settings.
Step 9. Close AKVIS Enhancer by clicking on .
