Lioness in a Cage: Remove Iron Rods The plug-ins AKVIS Retoucher and AKVIS Stamp are efficient for photo restoration tasks. They can be applied to restore old damaged photos or to remove a date stamp or an unwanted object, like a finger that covered the lens when shooting or an irrelevant object that spoils the shot.
This tutorial illustrates the second case: we will use AKVIS Retoucher and AKVIS Stamp to remove the cage rods from the photo below.
- Step 1. Open the image in your photo editor.
You can apply the plug-ins and repeat the tutorial with one of the following photo editing software: Adobe Photoshop, Corel Photo-Paint, Paint Shop Pro, Ulead PhotoImpact, ACD Photo Editor or Macromedia Fireworks.

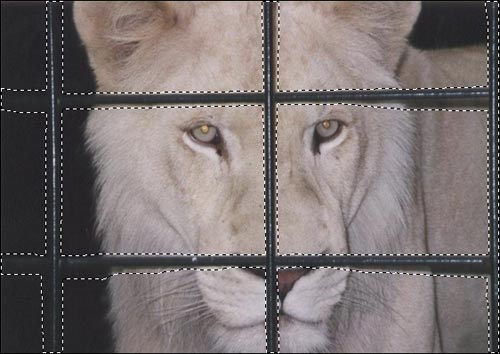

- Step 2. Select the rods with any selection tool. Do not forget to select the shades as well.
Every photo editor has its own selection tools, use the one you like.
- Step 3. Call the plug-in AKVIS Retoucher by selecting the command AKVIS -> Retoucher from the menu Filter (Effects) of your photo editor. You will see the plug-in's program window; the selected area will be highlighted in red.
- Step 4. Start the retouching process by pressing the button
 in the toolbar. The red mask disappears giving place to restored areas.
- Step 5. When the retouching process is over, press the button
 .
The result is not completely satisfying: Retoucher spared us the time that we could spend on removing the rods manually, but it failed to restore the nose and the hair is not even.
- Step 6. We will touch up the photo with the plug-in AKVIS Stamp.
AKVIS Stamp is a cloning tool similar to Healing Brush Tool of Adobe Photoshop.
AKVIS Stamp does not only clone an image fragment but also adjusts the "patch" to the background - smoothes its edges and adapts its colors to the new environment. Read more about the plug-in AKVIS Stamp here.
Call AKVIS Stamp by selecting the command AKVIS -> Stamp from the menu item Filter (Effects).

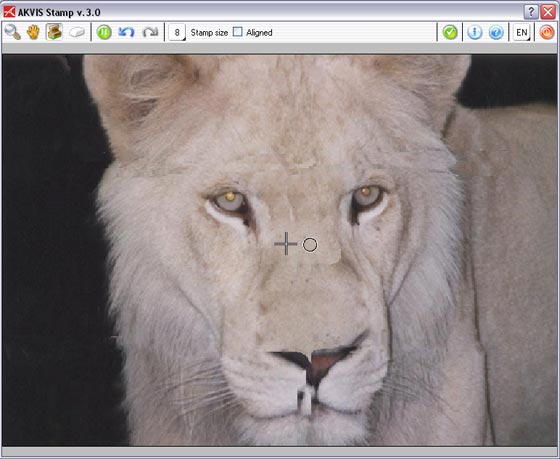

You can use the plug-in AKVIS Stamp for photo restoration: replace the damaged areas with other fragments from the same image. Set the source for cloning with the left click keeping the key Alt (Option in Macintosh) pressed. Then just draw over the "seams" on the hair of the lioness with the Stamp tool.
- Step 7. When all the areas are retouched, apply the result by pressing the button in the plugin's program window.
- Step 8. We didn't use AKVIS Stamp for restoration of the lioness's nose. It's better to use for this purpose the standard cloning tool that you can find in the Toolbar of your photo editor. In Adobe Photoshop you can use Clone Stamp Tool, in Paint Shop Pro - Clone Brush, in Corel PHOTO-PAINT - Clone Tool, in Macromedia Fireworks - Rubber Stamp Tool.
The difference between the standard cloning tool and AKVIS Stamp is that the first clones an area as it is, while AKVIS Stamp adjusts the "patch" to the background making the cloning seamless. As for the nose of the lioness, one should use the standard cloning tool to keep the edges of the nose clear; AKVIS Stamp would make it smear.
Here is the final photo of the lioness: the rods are removed.
| |
|
Lioness in a Cage (remove rods)
